Insu® Jac Pedestal System

Adjustable Pedestal Leveling System
Insu® Jac Pedestal System is a high-performance adjustable support system engineered for raised flooring, timber decking, stone pavers and rooftop applications. Designed for flexibility and durability, the system allows precise height adjustment while creating a level finished surface over uneven substrates and sloped waterproofed areas.

The modular pedestal system improves drainage performance beneath raised floors by creating a continuous void space that allows water flow, ventilation and easy access to waterproofing systems and concealed services.

Suitable for roof decks, podiums, balconies, terraces and landscaped areas, the Insu® Jac Series supports various architectural finishes including timber decking, porcelain tiles, concrete pavers and stone slabs.

The system includes a complete range of pedestal bodies, shims, slope correctors and accessories to accommodate different project conditions and installation requirements.

Manufactured with high compressive strength materials, the Insu® Jac System provides long-term structural stability, installation flexibility and efficient maintenance access for modern architectural and landscape projects.

Fire-resistant versions are available for selected project requirements.

Pink Poppy Flowers

Click Logo to View Cert

System Components

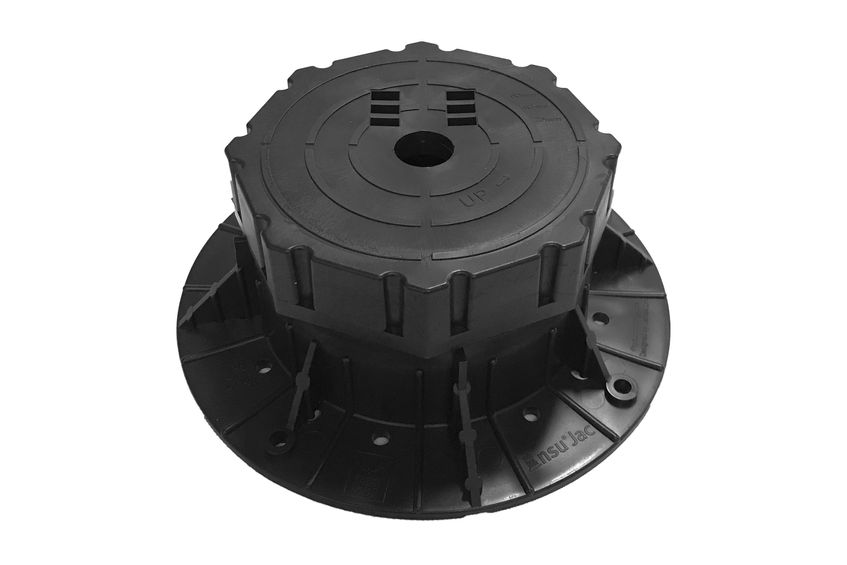

1. Insu® Jac Series

Main Adjustable Pedestal

Function:

Primary adjustable pedestal support system for raised flooring and decking applications.

Applications:


  • Roof decks

  • Podium decks

  • Balconies

  • Outdoor terraces

  • Raised flooring systems

  • Landscape decks

Benefits:


  • Adjustable height from 45mm to 1500mm

  • Suitable for stone and timber decking

  • High compressive strength

  • Creates accessible service void beneath finishes

  • Fast and modular installation

* Compressive Load is typically higher than market
* Fire Resistant Version Available

2. Insu® Jac 2 & 10

Low Height Shim System

Function:


  • 2mm adjustable shim designed for ultra-low height applications and fine leveling adjustments.

  • 10mm base support designed for low-height raised flooring systems.

Applications:


  • Low-profile decking

  • Balcony overlays

  • Renovation works

  • Height correction

Benefits:


  • Adjustable from 10mm–46mm through stacking

  • Fine adjustment capability

  • Suitable for low-clearance applications

  • Easy installation

3. Insu® Jac Slope Corrector

Adjustable Slope Compensation System

Function:
Slope correction accessory for leveling surfaces on sloped substrates.


  • Corrects 1° slope per unit

  • Stackable up to 7°

Applications:


  • Maintains level deck surface

  • Compatible with pedestal systems

Benefits:


  • Sloped roof decks

  • Waterproofed podiums

  • Stone flooring

  • Timber decking systems

4. Insu® Jac Accessories

Decking & Paver Support Accessories


  • Wood Holder

Designed to securely support timber joists and decking planks.


  • Stone Spacer

Provides uniform spacing and alignment for stone slabs and pavers.

Frequently Asked Questions

1. Can the pedestal system support heavy loads?

Yes. The system is engineered with high compressive strength suitable for pedestrian and landscape loading applications.

2. Is the system suitable for uneven surfaces?

Yes. The adjustable pedestal configuration allows easy levelling over uneven substrates and varying floor elevations.

3. Are accessories available for the system?

Yes. Insu® Jac Series is compatible with various accessories including:

  • Timber joist holders

  • Stone spacers

  • Slope correction components

  • Height extension accessories
